AI Powered RFID Reader

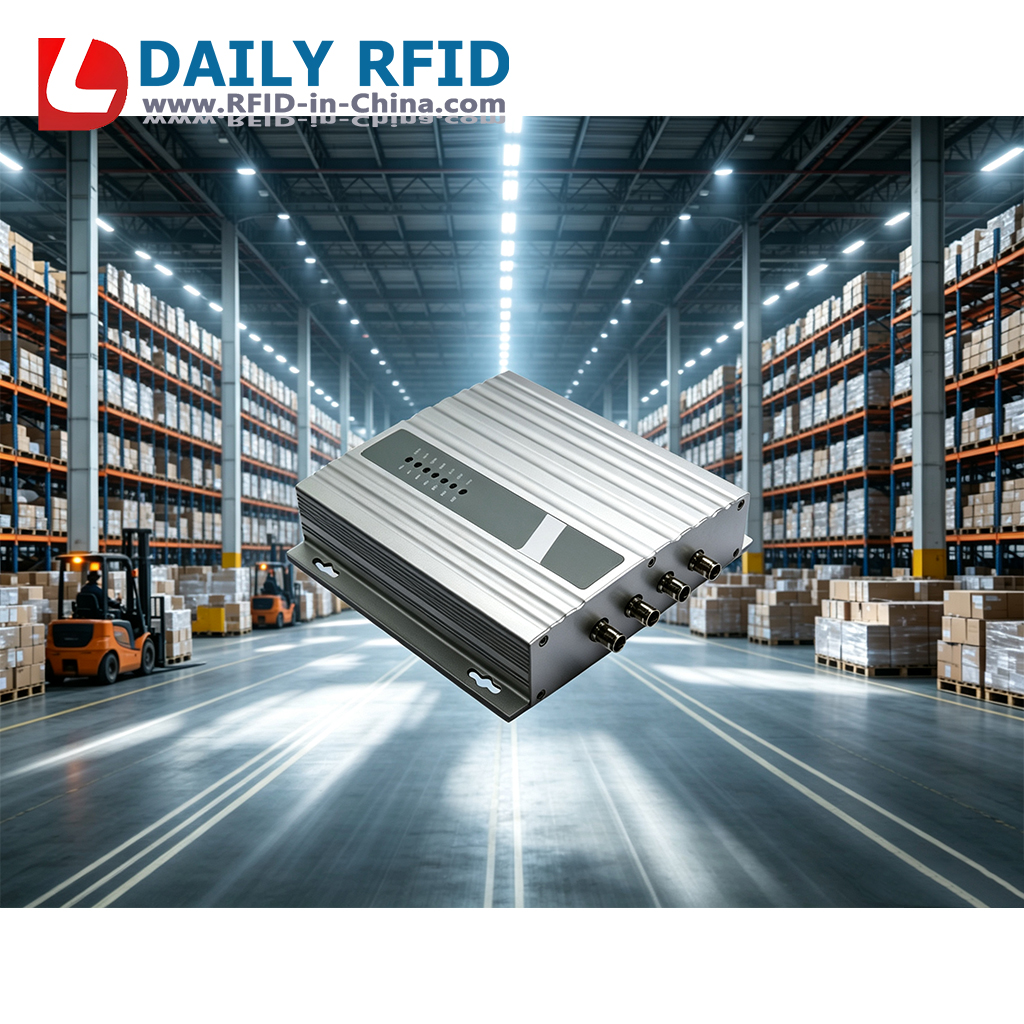

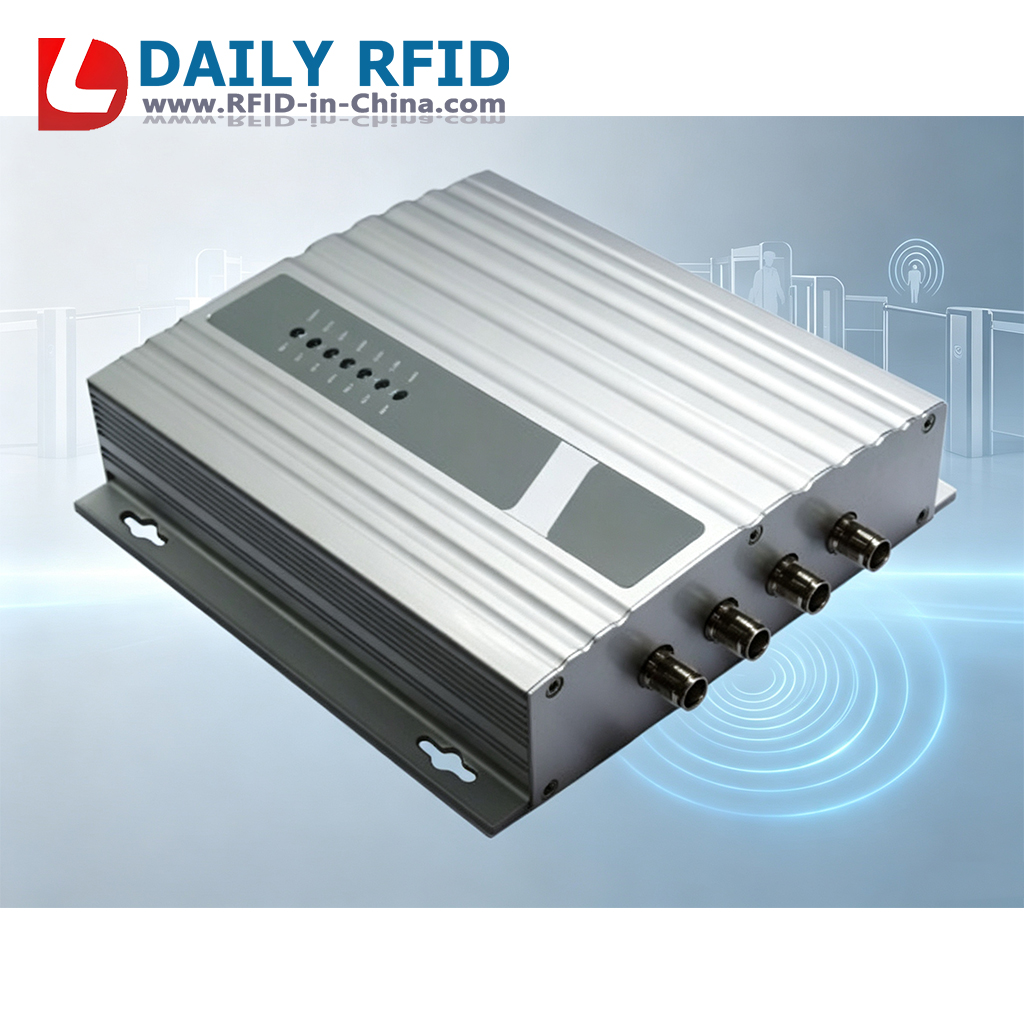

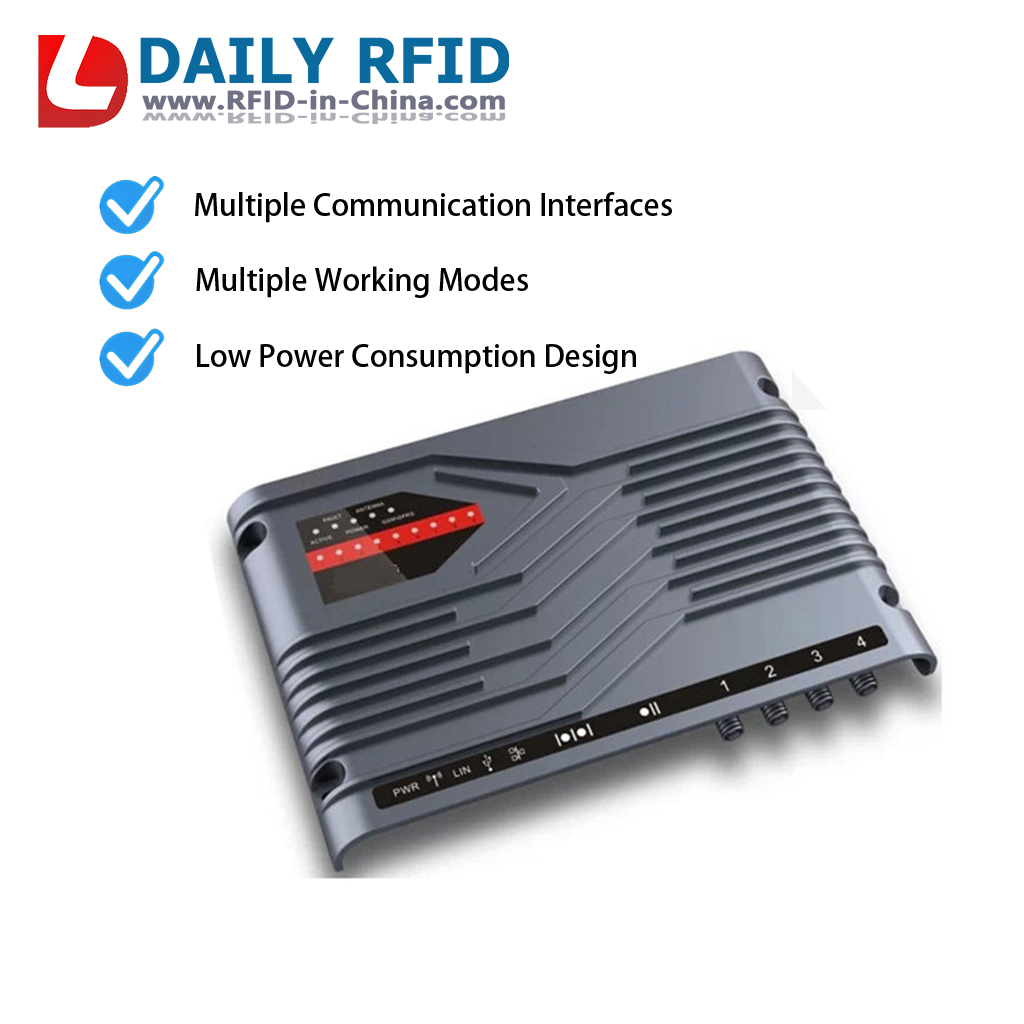

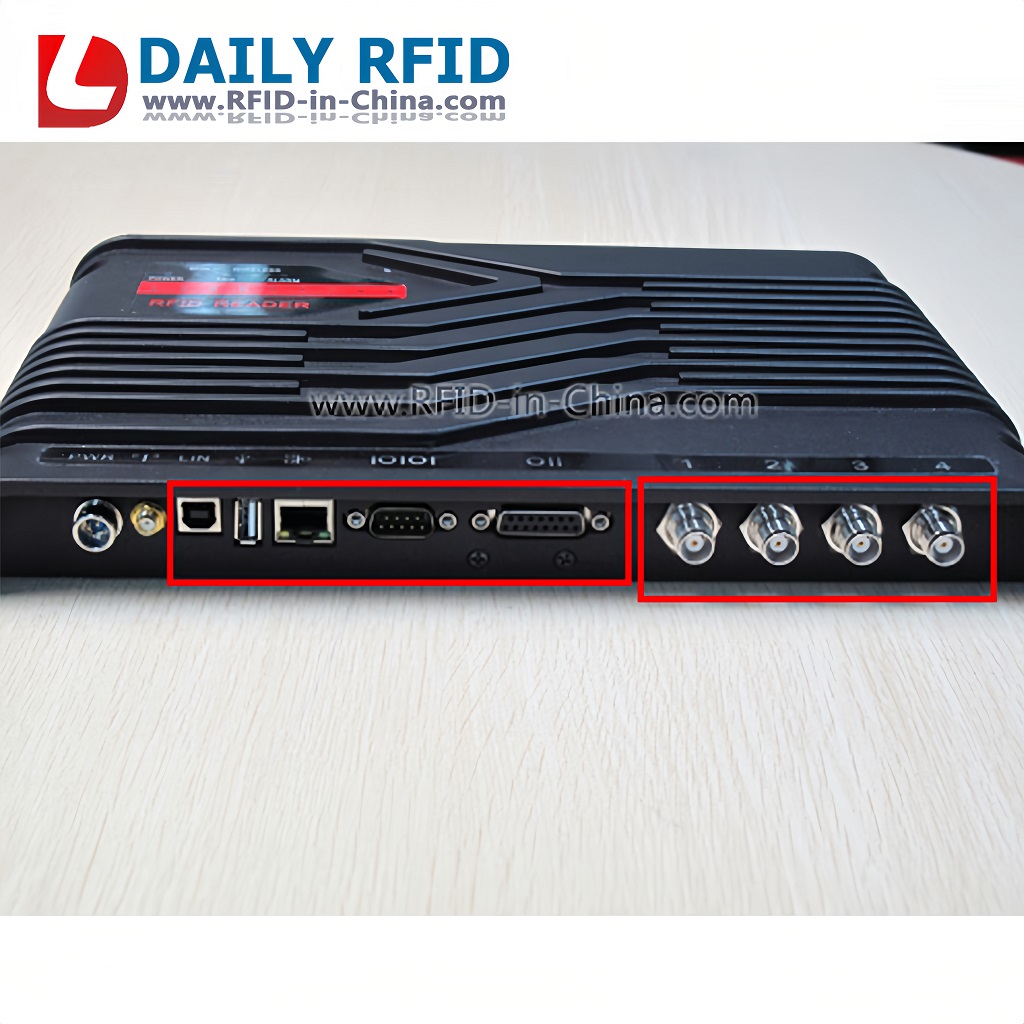

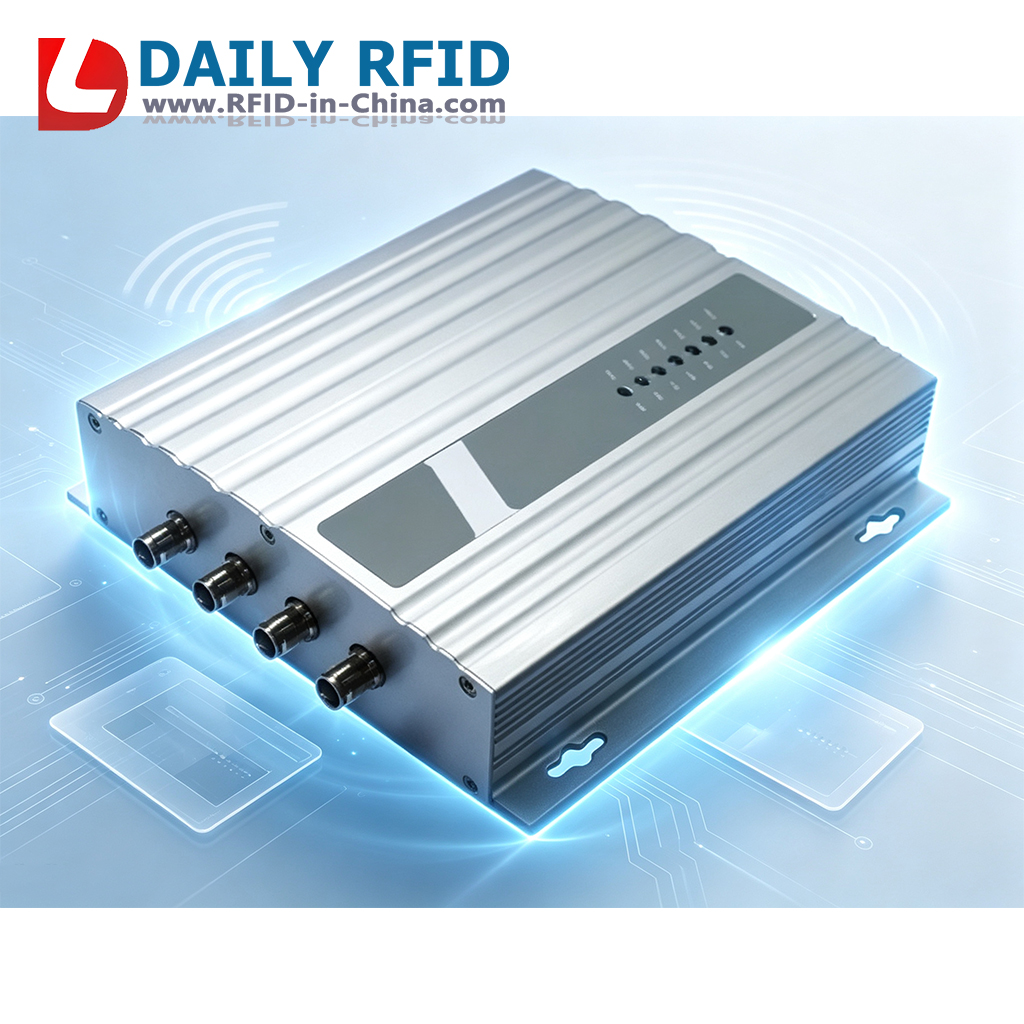

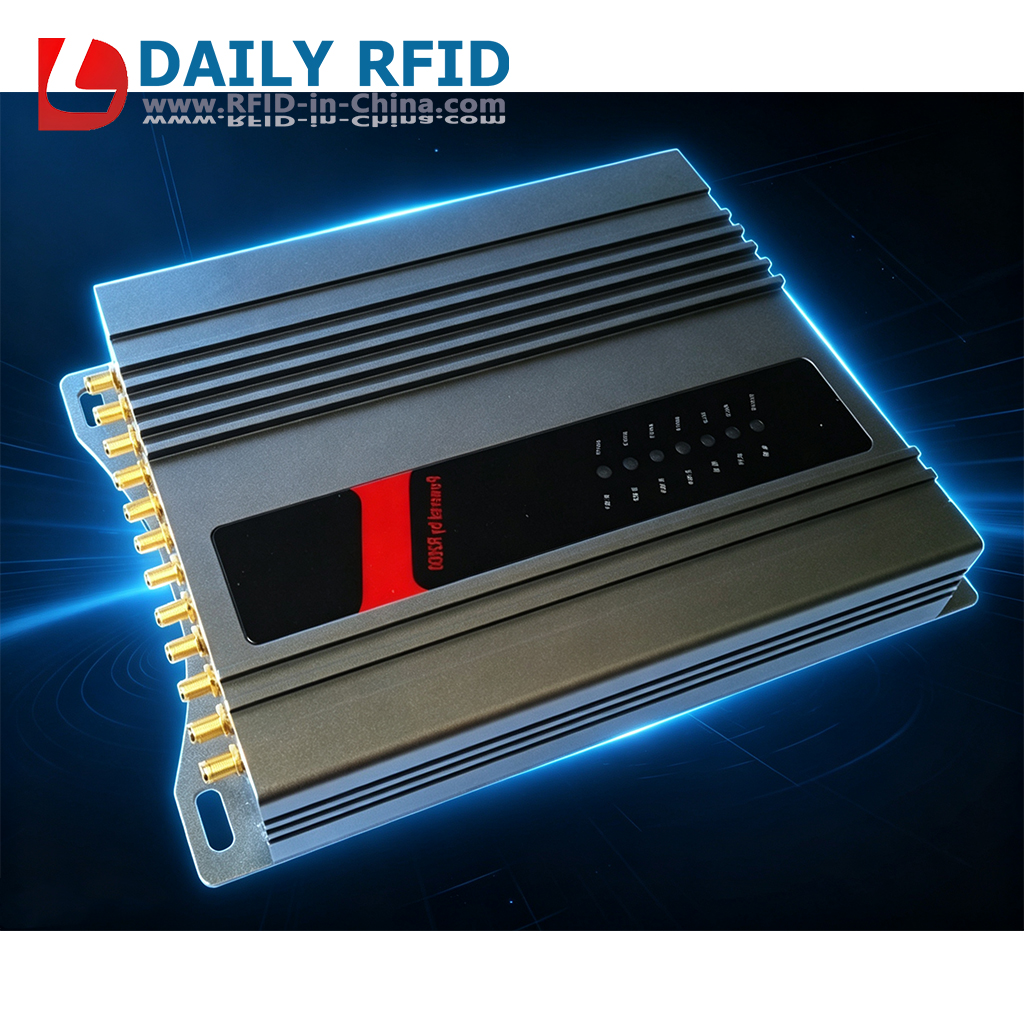

Type: AI Anti-interference Multi-channel RFID Reader Model: DL6940/6960 AI Multi-Antenna 4-Port UHF Reader Params: Type: DL6960 AI Multi-Antenna 4-Port UHF Reader Support protocol: ISO18000-6B / ISO18000-6C EPC Gen2 Operating Frequency: UHF 860MHz~960MHz Working mode: AI-driven adaptive dense read mode and software customizable fixed frequency mode Transmit power (Max): High-efficiency adaptive power delivery, optimized for ultra-long reading range up to 30m Antenna: 4 external TNC/SMA antenna ports supporting up to 4 sets of multi-antenna array deployment Reading Range: Up to 25m ~ 30m Anti-collision: High-density anti-collision performance supporting up to 1000 tags simultaneous reading Read speed: 16 times faster than ordinary mainstream readers, with average single card read time less than 10ms RSSI: Integrated and supported Read prompt: Buzzer and light indication SDK: Free SDK and comprehensive development library included Power supply: DC +9V Power consumption: 5W Operating Temp.: -30°C ~ +70°C Storage Temp: -30°C ~ +70°C Dimension: 230mm × 170mm × 40mm Weight: 2300g Case Color: Black, customizable International Protection: IP64 Humidity: 5% to 95% non-condensing RS232 Port: Supported RJ45 Port: Supported TCP/IP Port GPIO: Supported via integrated hardware trigger and RS485 communication interfaces USB: Supported 4g/wifi/bt: Not supported by default, customizable via hardware extension SDK Support: Complete multi-environment software engineering files and deployment documentation provided OEM & ODM Support: Customizable housing appearance, size and multi-interface configuration Advantage 1: Equipped with advanced AI edge acceleration algorithm, the data processing speed is 16 times higher than ordinary readers, effectively eliminating mass data processing bottlenecks. It supports high-density anti-collision reading of up to 1000 tags at the same time, ensuring zero missing and overlapping data during large-scale batch identification. Advantage 2: Features 4 independent external antenna ports with AI multiplexing coordination technology, realizing multi-zone simultaneous scanning and 360-degree blind-spot-free coverage. It supports ultra-long reading distance of 25 to 30 meters and writing distance of 10 to 15 meters, greatly expanding single-point monitoring coverage and improving overall inventory efficiency. Advantage 3: Adopts low-power high-efficiency hardware design with only 5W power consumption while maintaining ultra-long-distance high-speed operation, reducing equipment heat generation and operation loss. With IP64 protection grade and wide temperature adaptability, it operates stably in harsh industrial environments and supports diversified secondary development and personalized hardware customization Material: Aluminum,rfid chip, PCB board Applicable Industry: Large distribution center and smart warehouse high-volume logistics batch inventory and forklift cargo fast scanning; highway toll stations and port multi-lane long-distance vehicle automatic identification and tracking; high-value asset vault and luxury jewelry mass simultaneous counting management; automated manufacturing production line raw material tracking and harsh industrial environment stable identification monitoring Long Range RFID Reader DL6940 with 4 antenna ports -1 Long Range RFID Reader DL6940 with antenna ports-2 Long Range RFID Reader DL6940 with antenna ports -1 Long Range RFID Reader DL6940 with antenna ports 1 Reader DL6960 Multi-Antenna 4-Port UHF Reader (1) Reader DL6960 Multi-Antenna 4-Port UHF Reader (1) Reader DL6960 Multi-Antenna 4-Port UHF Reader (3) Reader DL6960 Multi-Antenna 4-Port UHF Reader (2) Long Range RFID Reader DL6940 with antenna ports 2
