Ceiling RFID Reader

Quantity:
SKU: 7498910152
Model: 4195904056

{{ variable.name }}

{{ value.name }}
Product Details

Product Specification

TypeAll-in-one Ceiling Mount RFID ReaderModelDL6990 UHF Ceiling RFID Reader (Integrated Antenna)
ParamsType: DL6990 UHF Ceiling RFID Reader Support protocol: ISO18000-6C, EPC Class 1 Gen 2 Operating Frequency: ISM 860MHz~868MHz, 902MHz~928MHz, or 920MHz~925MHz, frequency customization optional Working mode: Active Mode & Answer Mode Transmit power (Max): 33dBm Antenna: Integrated high-gain RFID reader antenna Reading Range: 0.1m~5m Anti-collision: Reads up to 50 pieces of tags simultaneously Read speed: The average read time for a single card is less than 10ms per 64 bits RSSI: Supported Received Signal Strength Indication Read prompt: Buzzer SDK: Free SDK provided attached to the Reader Power supply: DC+12~24V Power consumption: 12W Operating Temp.: -20°C ~ 60°C Storage Temp: -40°C ~ 85°C Dimension: 180mm × 180mm × 28mm Weight: 1500g Case Color: Gray International Protection: IP66 Humidity: 5% to 95% non-condensing RS232 Port: Supported RJ45 Port: Optional GPIO: Optional USB: Optional 4g/wifi/bt: Optional SDK Support: Broad multi-platform support including X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, and Android OEM & ODM Support: Customized sizes and shapes are available to meet distinct solution requirements Advantage 1: Equipped with maximum 33dBm adjustable high transmit power and high-gain integrated antenna, supporting overhead reading distance up to 5 meters. It provides wide-area ceiling coverage for room-scale monitoring, entry gate tracking and regional asset positioning without blind spots. Advantage 2: Adopts industrial IP66 waterproof and dustproof structure with wide temperature adaptability, stable operation in complex indoor and semi-outdoor environments. It supports high-density anti-collision reading of up to 50 tags at ultra-fast speed, ensuring efficient and accurate batch identification of moving bulk assets. Advantage 3: Features rich reserved industrial interfaces and flexible optional network modules to adapt to various on-site wiring conditions; supports full-platform multi-language SDK development, greatly reducing integration difficulty and shortening project deployment cycle for secondary development.MaterialABS/PC engineering plastic, rfid chip,PCB board
Applicable IndustrySmart retail and apparel showroom ceiling inventory monitoring and customer flow analysis; warehouse gateway and logistics channel overhead tracking for pallets and cartons; hospital corridor and cleanroom high-value medical equipment real-time positioning management; government and enterprise archives wide-area document and asset continuous auditing monitoring 图片

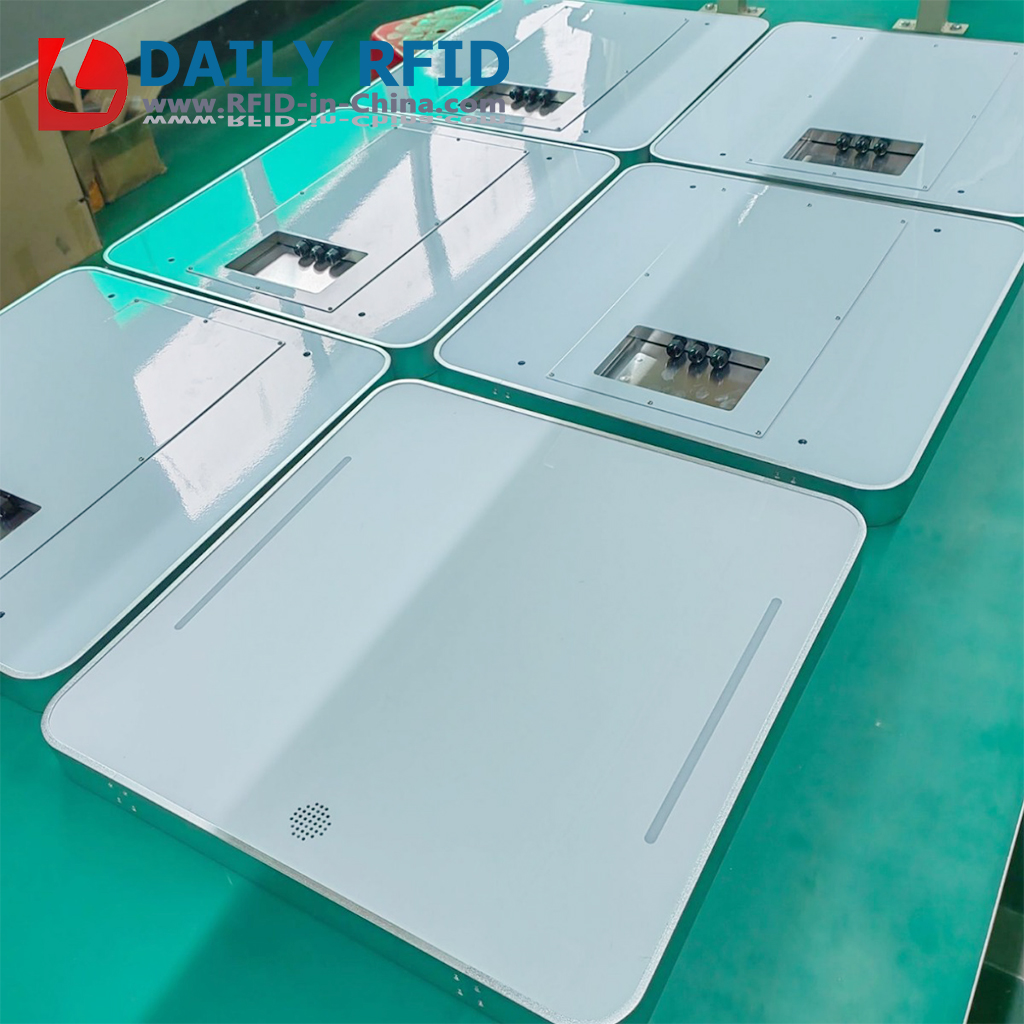

DL6990 UHF Ceiling RFID Reader (Integrated Antenna) (1)

DL6990 UHF Ceiling RFID Reader (Integrated Antenna) (1)

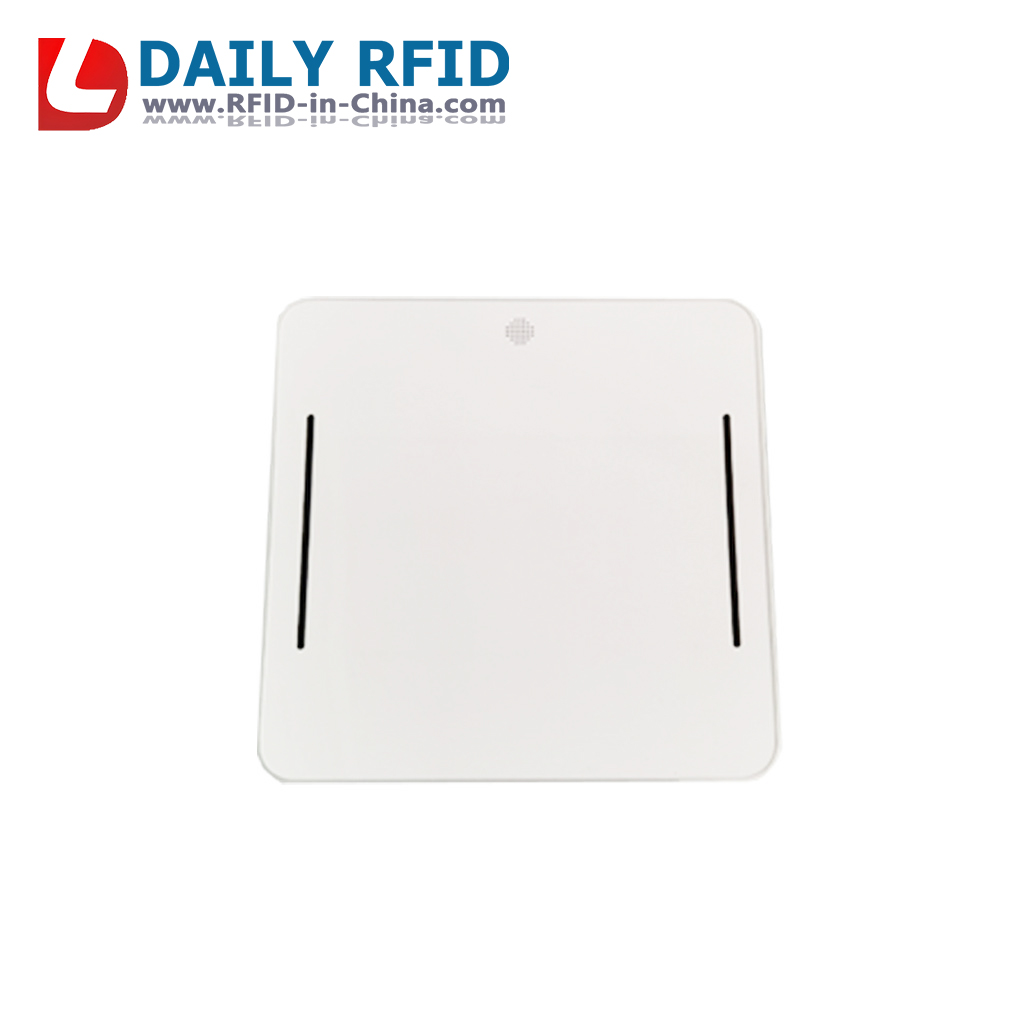

DL6990 UHF Ceiling RFID Reader (Integrated Antenna) (2)

DL6990 UHF Ceiling RFID Reader (Integrated Antenna) (2)

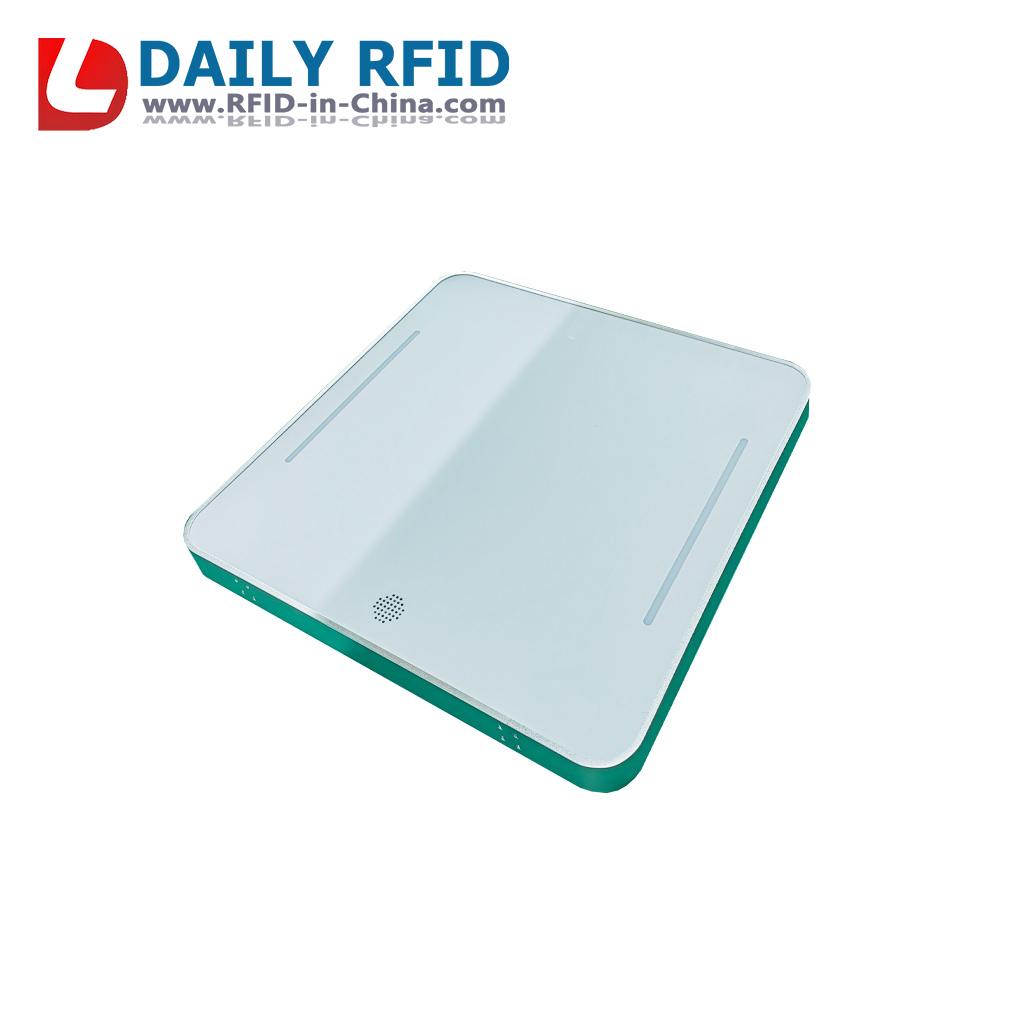

DL6990 UHF Ceiling RFID Reader (Integrated Antenna) (3)

DL6990 UHF Ceiling RFID Reader (Integrated Antenna) (3)
