RFID Gate

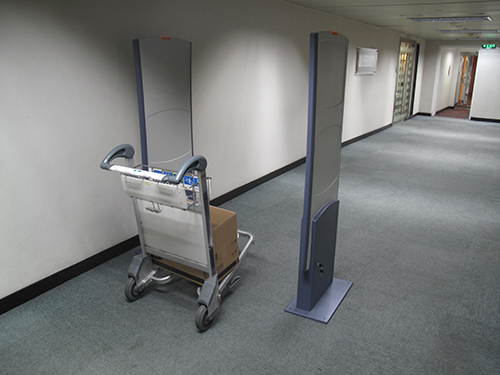

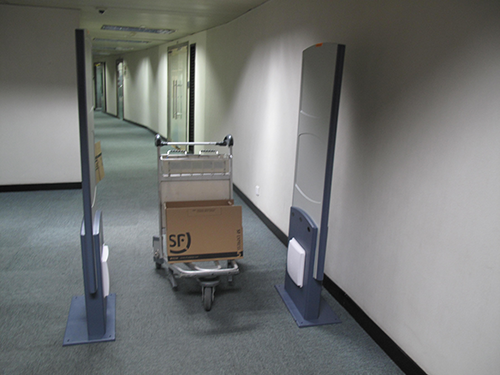

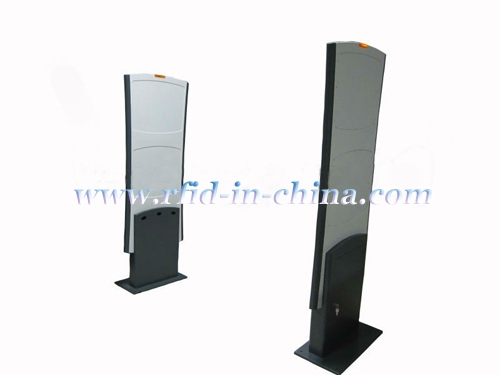

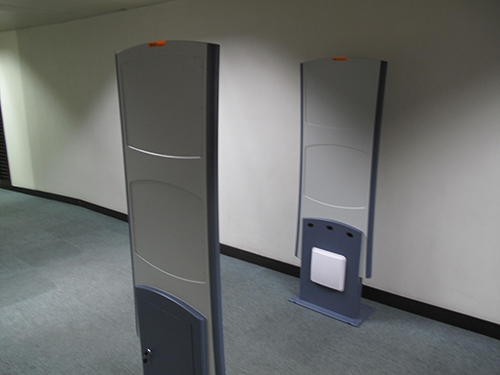

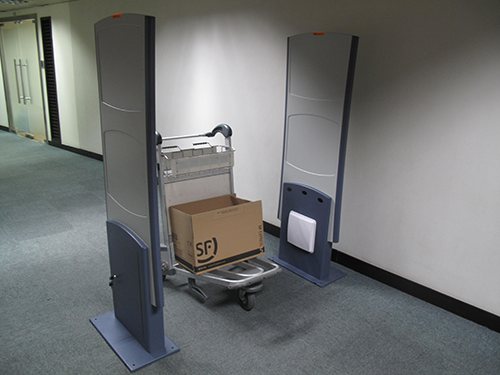

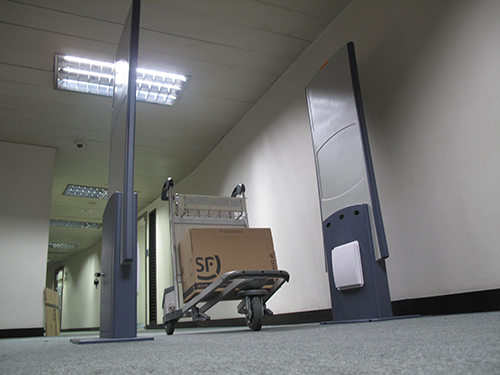

Type: Integrated Access Control Gate Reader Model: DL8330U Advanced UHF RFID Gater Params: Type: Advanced UHF RFID Gater DL8330U Support protocol: ISO18000-6C, EPC Class 1 Gen 2, ISO18000-6B Operating Frequency: 902MHz~928MHz, adjustable according to various national regulations Working mode: FHSS Frequency Hopping Spread Spectrum or fixed frequency pulse transmitting mode Transmit power (Max): 30dBm adjustable Antenna: 4 built-in TX/RX antennas distributed across one main panel and one auxiliary panel Reading Range: 4m~7m channel width Anti-collision: Ultra-fast anti-collision performance optimized for open mass flow scenarios Read speed: Fast response optimized for mass flow detection RSSI: Not explicitly specified Read prompt: Integrated Buzzer and LED indication SDK: Supported with complete communication protocol details provided in user manual Power supply: AC 220V / 50Hz Power consumption: Low power consumption design approximately 35.2W calculated via 220V @ 160mA current Operating Temp.: Not explicitly specified, high reliability design for harsh environments Storage Temp: Not explicitly specified Dimension: 170cm × 60cm × 15cm per single panel Weight: 40Kg per single main antenna panel Case Color: Light gray International Protection: Not explicitly specified, high reliability design for harsh conditions Humidity: Not explicitly specified RS232 Port: Supported standard serial port for direct PC and mainframe communication RJ45 Port: Supported TCPIP interface GPIO: Supported for alarm auxiliary connections and optional infrared sensors USB: Not explicitly specified 4g/wifi/bt: Not explicitly specified SDK Support: Yes OEM & ODM Support: Customizable configurations supported with complete self-intellectual property Advantage 1: Equipped with four built-in TX/RX antennas, supporting an ultra-wide 4m to 7m walkthrough reading channel. It eliminates detection dead zones and passage bottlenecks, delivering stable and efficient mass-flow tag identification for high-traffic scenarios. Advantage 2: Features dual-protocol compatibility with ISO18000-6C and ISO18000-6B standards and adopts exclusive high-speed anti-collision algorithm, ensuring zero latency and missed reading during dense tag mass flow identification. It supports optional infrared direction sensing to realize intelligent access flow statistics and accurate entry-exit tracking. Advantage 3: Provides rich standard industrial interfaces including RS232, RJ45 and GPIO for flexible equipment networking and alarm expansion. With low power consumption and high-reliability industrial design, it adapts to complex harsh environments and supports customized secondary development to meet diversified enterprise deployment needs. Material: ABS/PC engineering plastic, rfid chip,PCB board Applicable Industry: Exhibition and conference large-scale participant attendance statistics and automatic badge tracking; enterprise facility access control and internal asset anti-theft monitoring; smart library and media center entrance anti-theft identification and document borrowing records management; industrial factory assembly line and loading dock component batch tracking and production process flow control DL8330U plus-08 DL8330U plus-06 DL8330U plus-07 DL8330U plus-01 DL8330U plus-03 Advanced UHF RFID Gater DL8330U
