RFID Sensing Tag

Quantity:
SKU: 7346927990
Model: Cold Chain Temperature Tag

{{ variable.name }}

{{ value.name }}
Product Details

Product Specification

TypeRFID Sensing TagsModelCold Chain Temperature Tag
ParamsOperating Frequency: 860-960 MHz (UHF / RAIN RFID Global Band) and 13.56 MHz (HF / NFC Type 5 fallback) IC Available: Asygn AS3213T, NXP UCODE 7xm / 7xm+, Fudan FM13DT160 (NFC Active Logger), Axzon (RFMicron) Magnus-S3, and Onsemi Belasignia series Size: Standard smart label size layouts: 98mm × 24mm, 85mm × 54mm (Credit card format), 73mm × 21mm, or 50mm × 50mm (Thickness: 0.45mm to 0.85mm for thin printed battery models) Reading Distance: Passive UHF Mode (No battery sensor query): 2 meters to 5 meters (approx. 6.5–16.4 feet). Semi-Passive/Battery-Assisted Passive (BAP) Logging Mode: 5 meters to 12 meters (approx. 16.4–40 feet) via specialized long-range portals. NFC smartphone read tap limit: 2cm to 5cm. Material: Double-sided coated waterproof Polypropylene (PP) face stock or medical-grade PET plastic layer, embedded ultra-thin flexible printed zinc-manganese or lithium paper battery (for data logging models), high-accuracy micro-machined internal silicon temperature sensor die, and sub-surface etched aluminum or copper loop antenna coils back-coated with high-tack acrylic cryogenic adhesive Color: Clean clinical white, bright safety blue, or blank printable face stocks supporting custom pre-printed visual warning boundaries, high-resolution barcode tracking lines, and digital QR codes Operating Temperature: Storage/Tracking Range: -40°C to +60°C (-40°F to 140°F); Sensor calibration limits focus tightly from -30°C to +50°C with precision tolerances Storage Temperature: -40°C to +85°C (-40°F to 185°F) Competitive Advantage 1. High real-time temperature sensing precision, with accuracy ranging from ±0.1°C to ±0.5°C even under ultra-low temperature freezing environments; the tag maintains lightweight and slim structure and can be directly attached to conventional shipping pouches 2. Supports customizable programmable time-temperature logging intervals from 1 minute to multiple hours, with built-in large-capacity storage that can store 4000 to 16000 independent temperature record data points locally on the label 3. Adopts ultra-thin safe non-hazardous printed paper battery design, fully compliant with air freight shipping regulations; realizes uninterrupted goods environmental monitoring, eliminating the need to recycle cumbersome traditional USB data loggers for data downloadingMaterialPet, Paper, Rfid chip, 3M sticker
Applicable IndustryPharmaceutical Vaccine Cold Chains, Biological Reagent & Clinical Blood Bag Logistics, Premium Fresh Seafood & Perishable Food Logistics, Intercontinental Biological Specimen Transport, High-Value Chemical Reagent Auditing, and Smart Cold-Storage Warehouse Fulfillment Centres
Cold Chain Temperature Tag 9827 (4)

Cold Chain Temperature Tag 9827 (4)

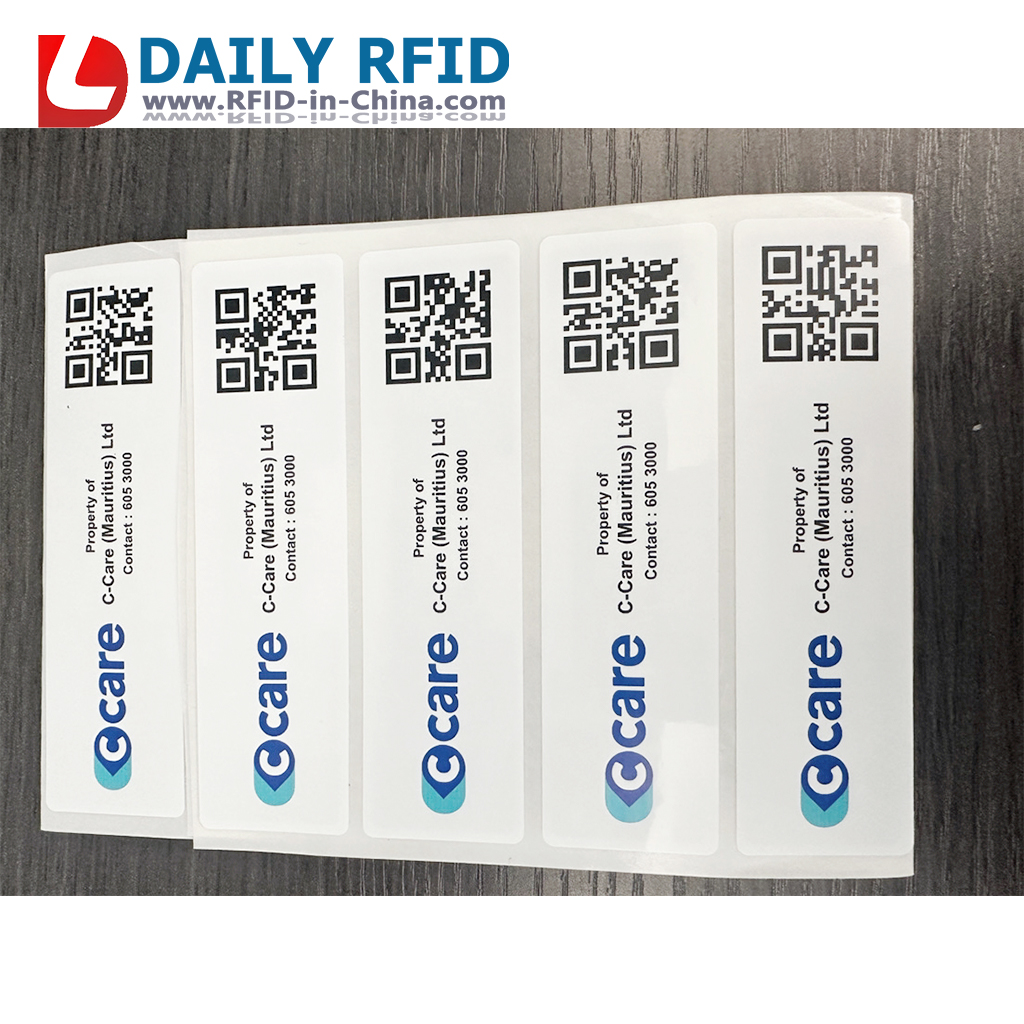

Cold Chain Temperature Tag 9827 (2)

Cold Chain Temperature Tag 9827 (2)

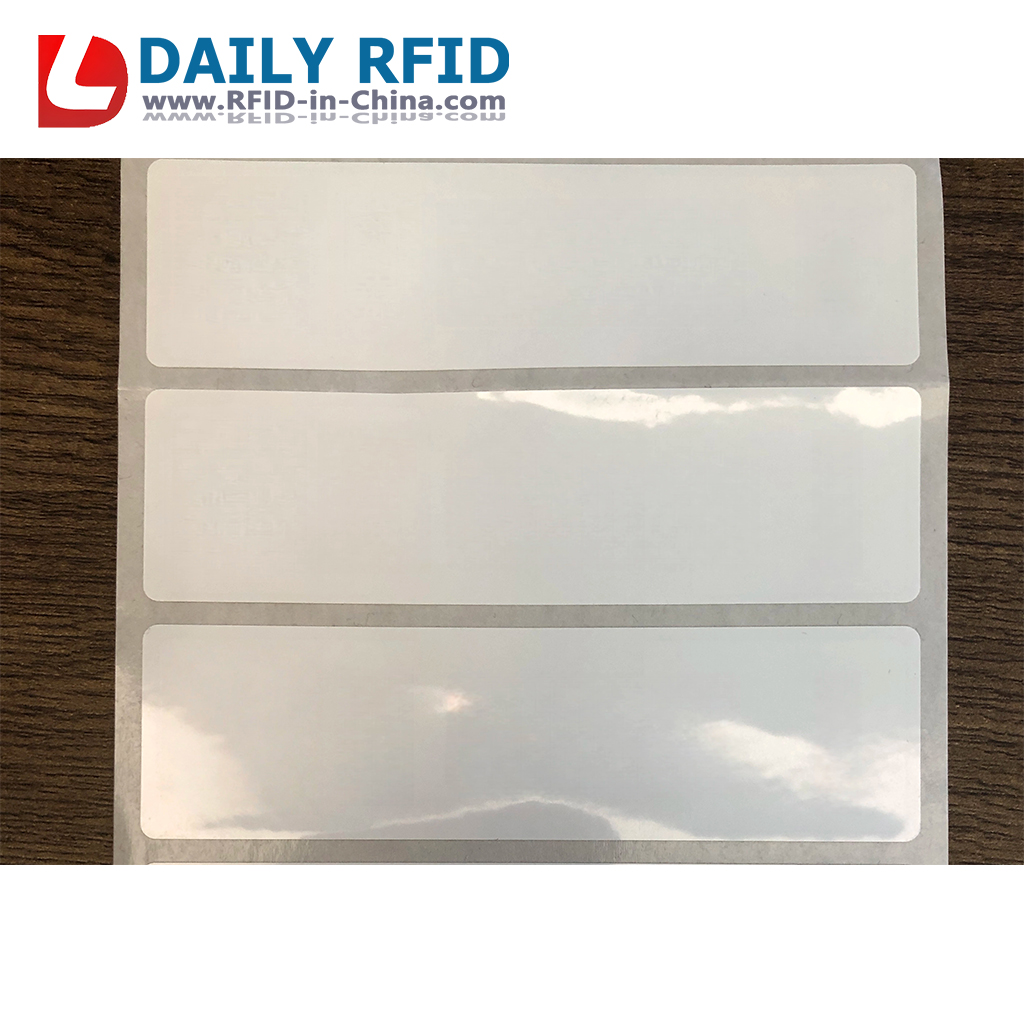

Cold Chain Temperature Tag 9827 (3)

Cold Chain Temperature Tag 9827 (3)

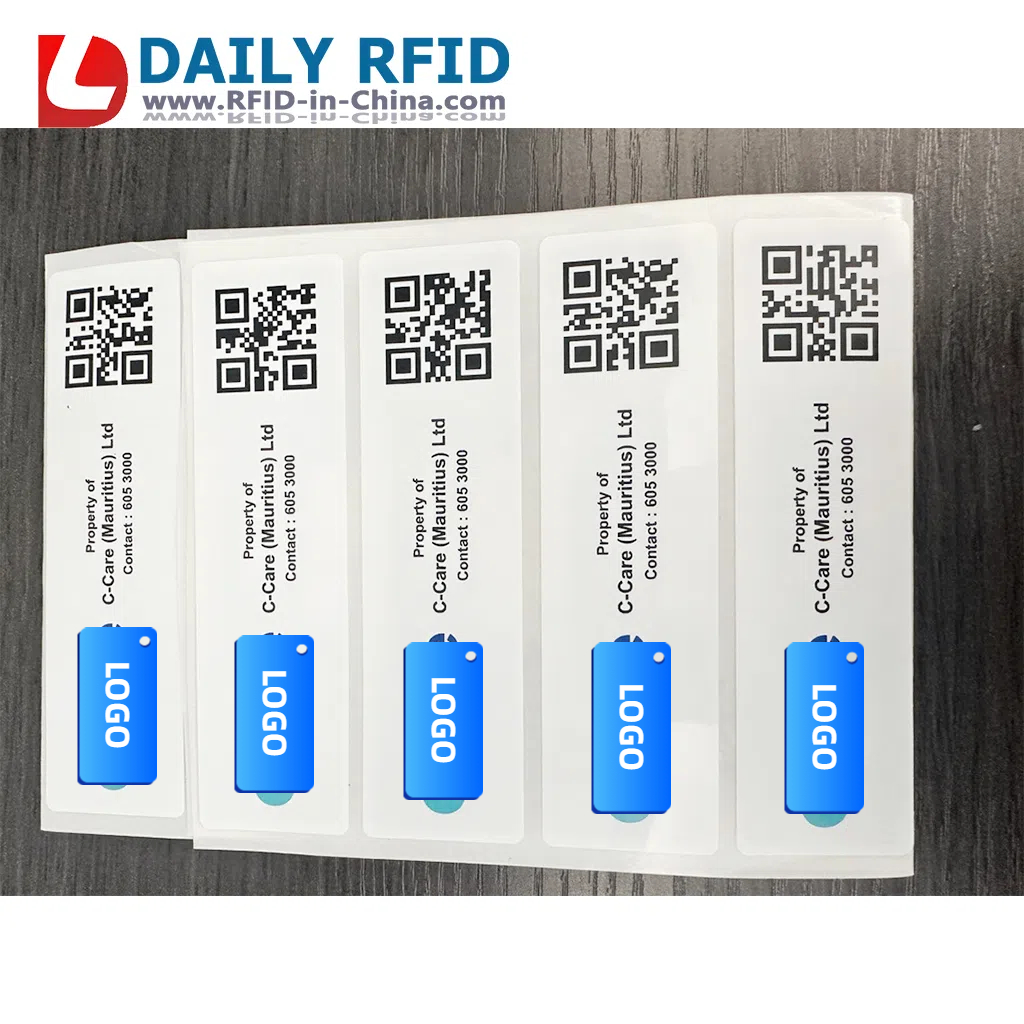

Cold Chain Temperature Tag 9827 (1)

Cold Chain Temperature Tag 9827 (1)
