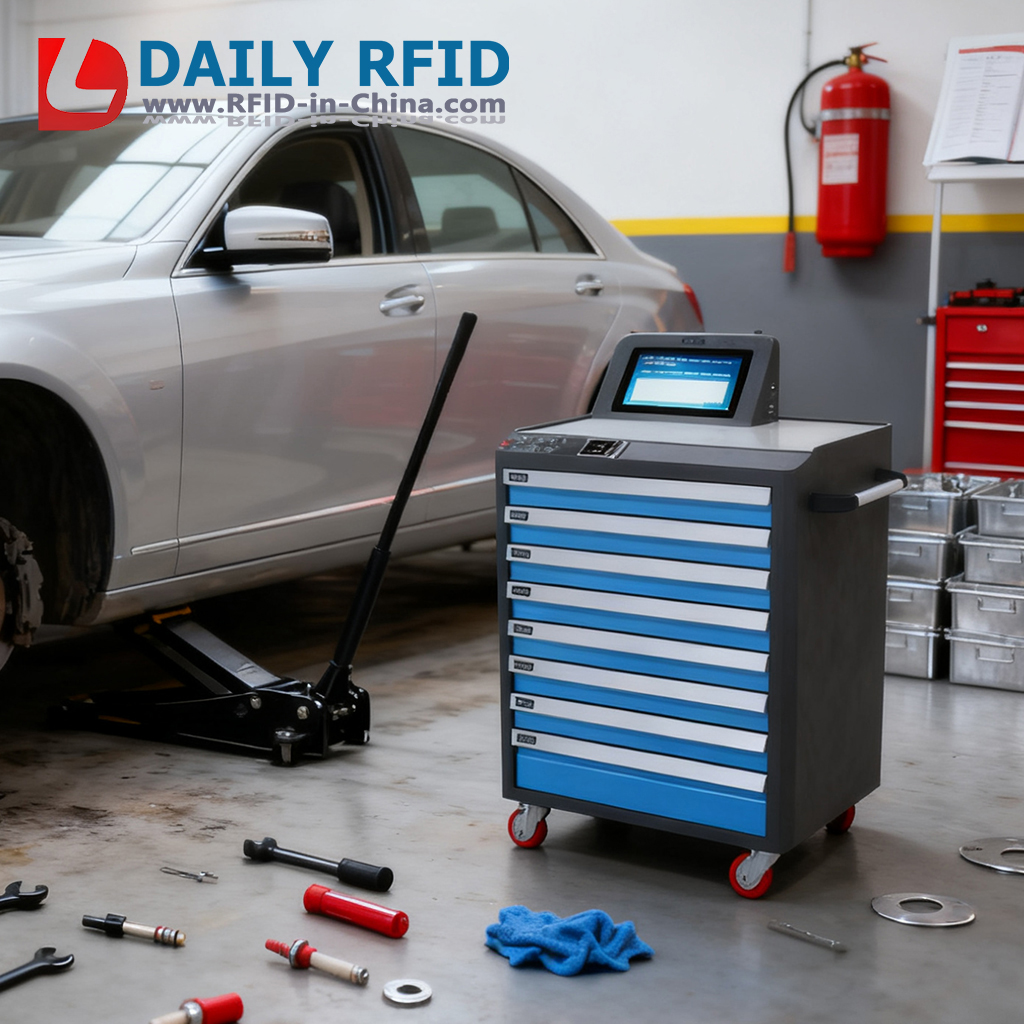

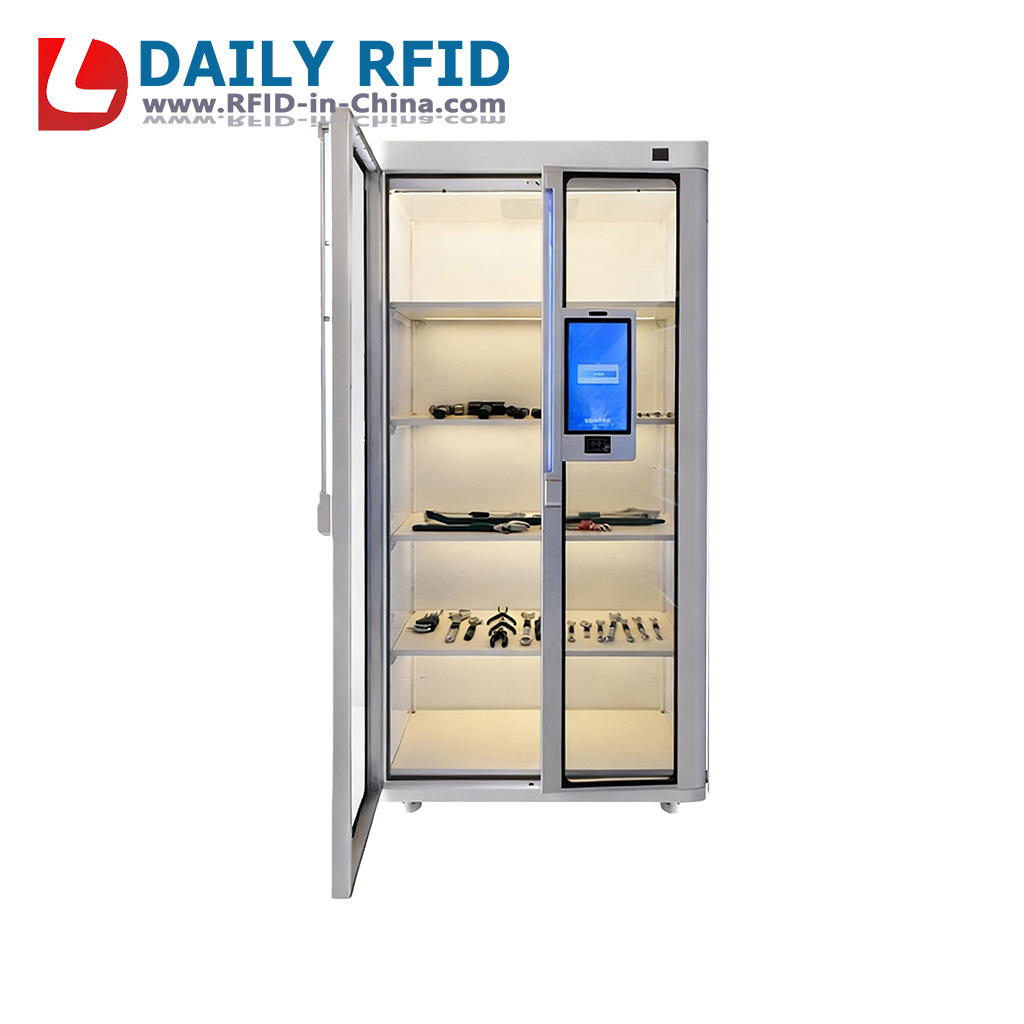

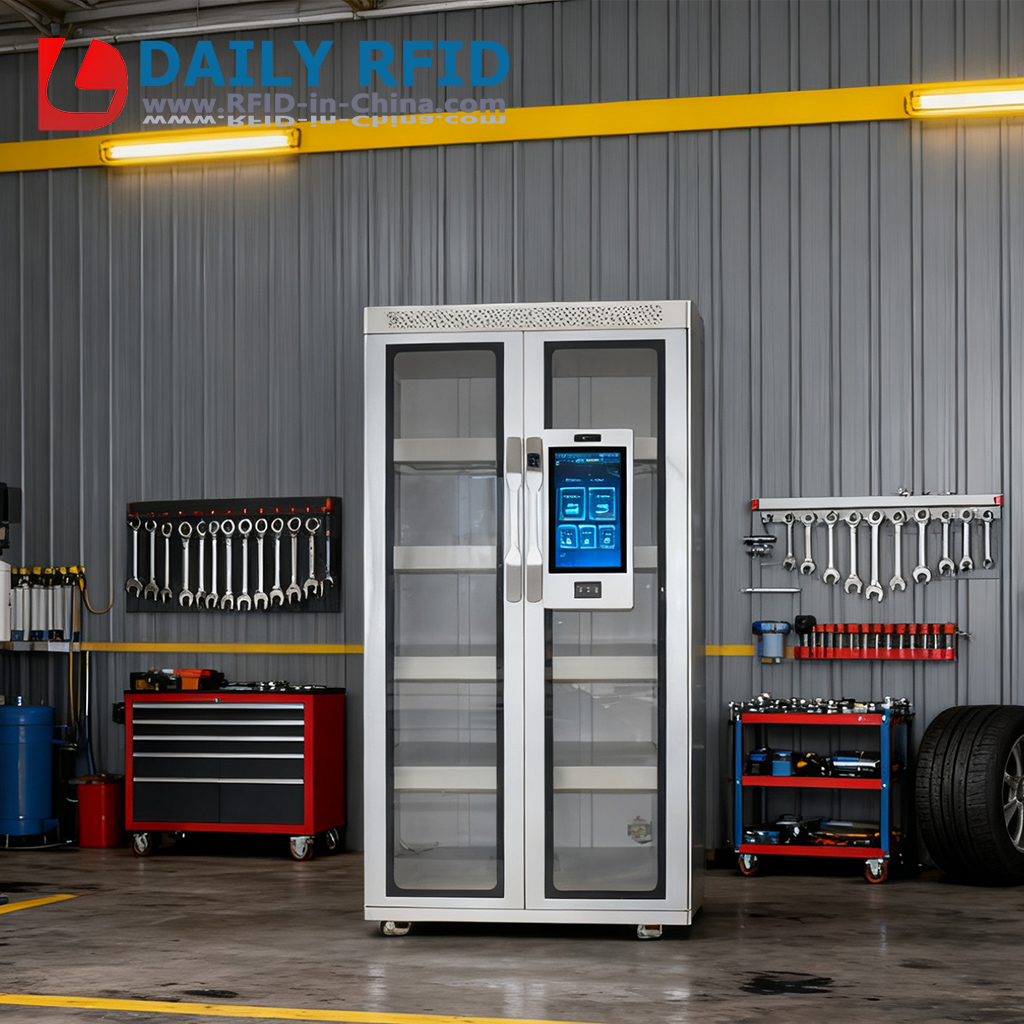

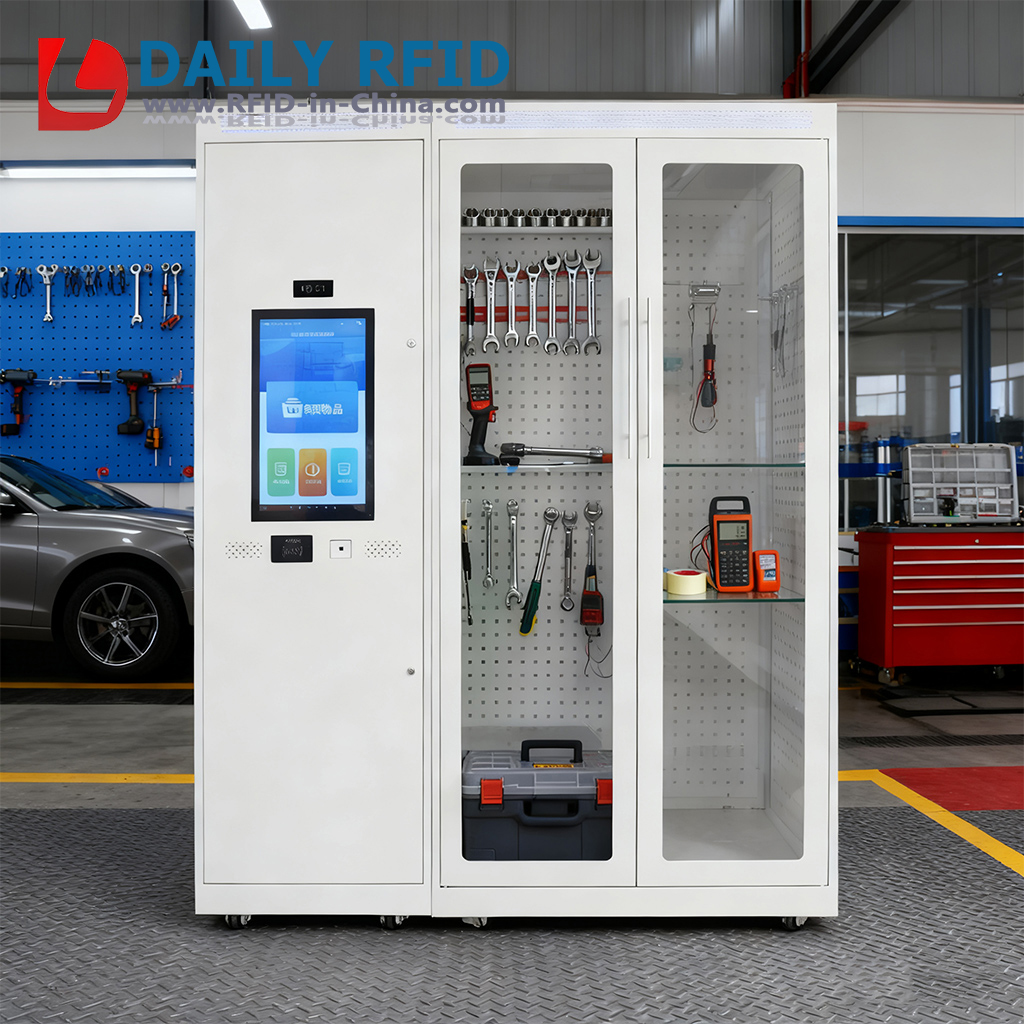

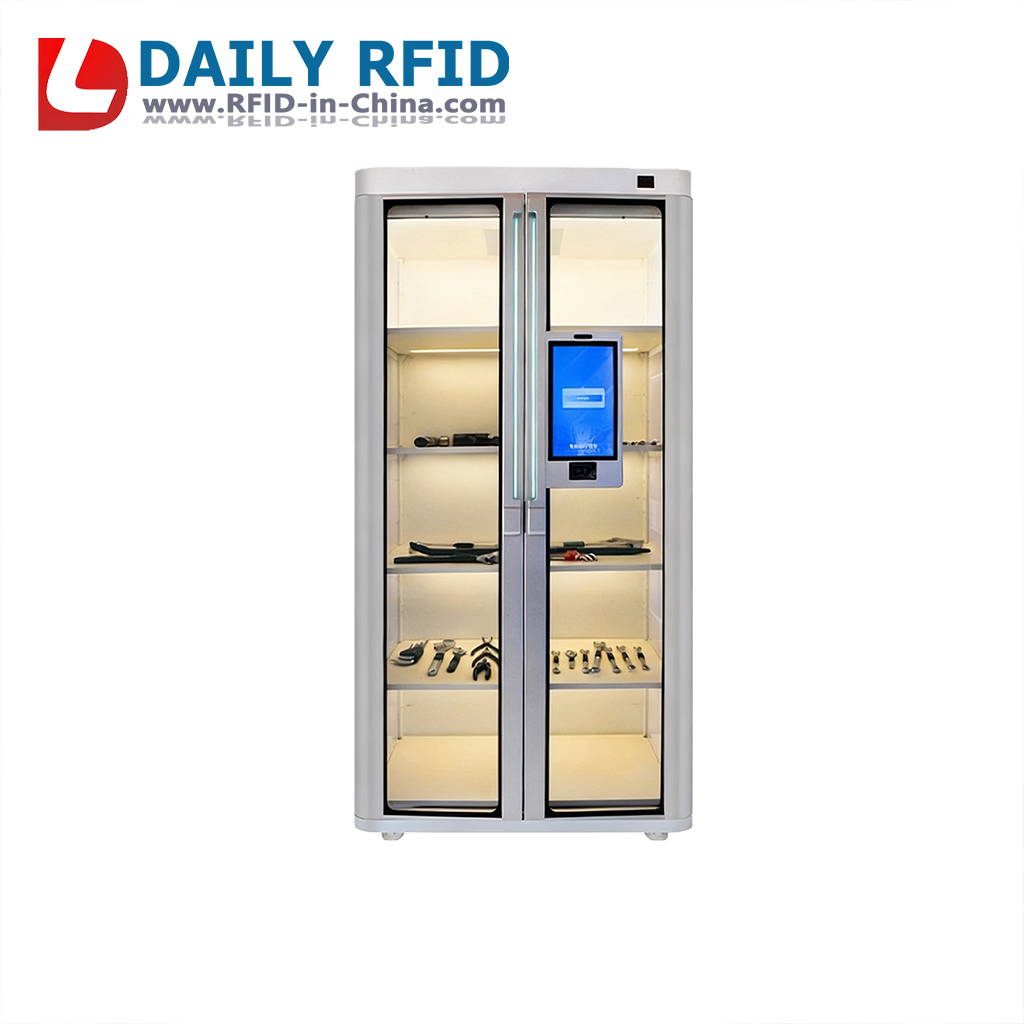

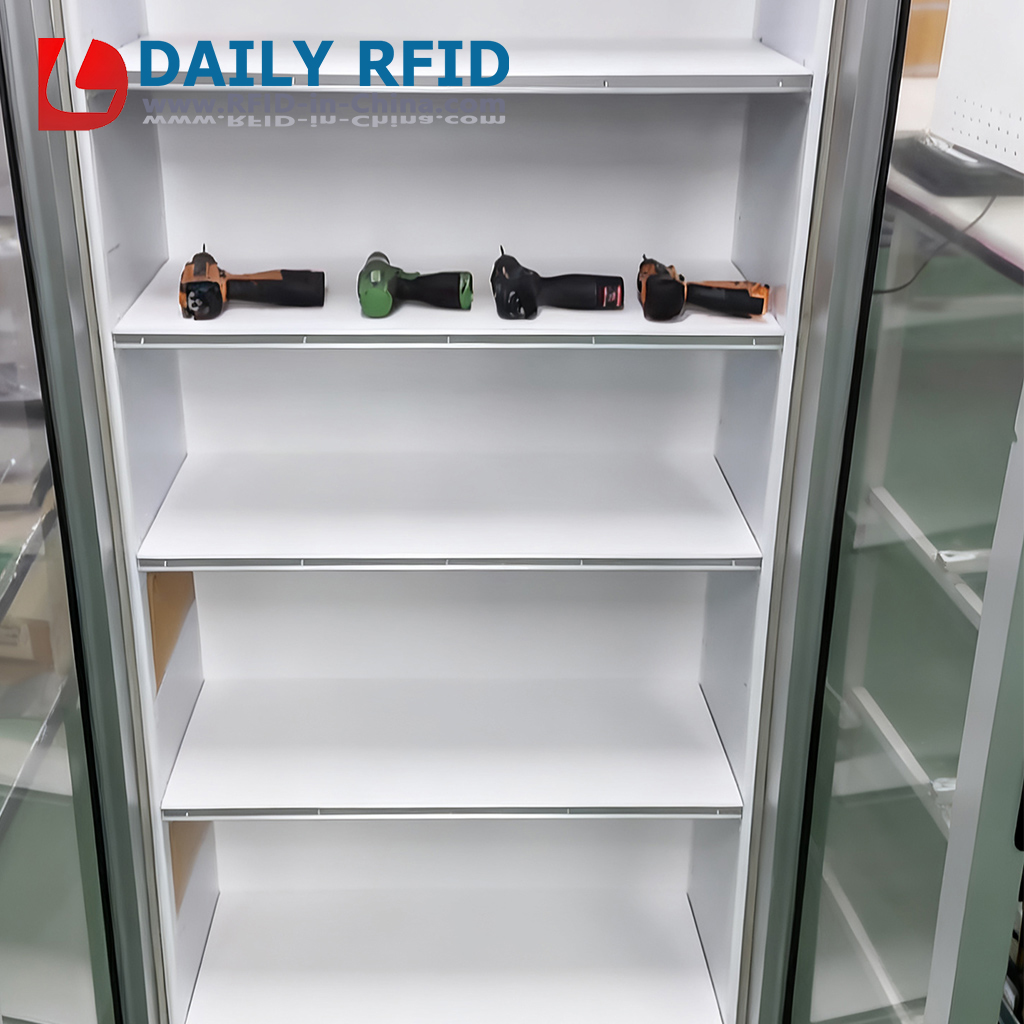

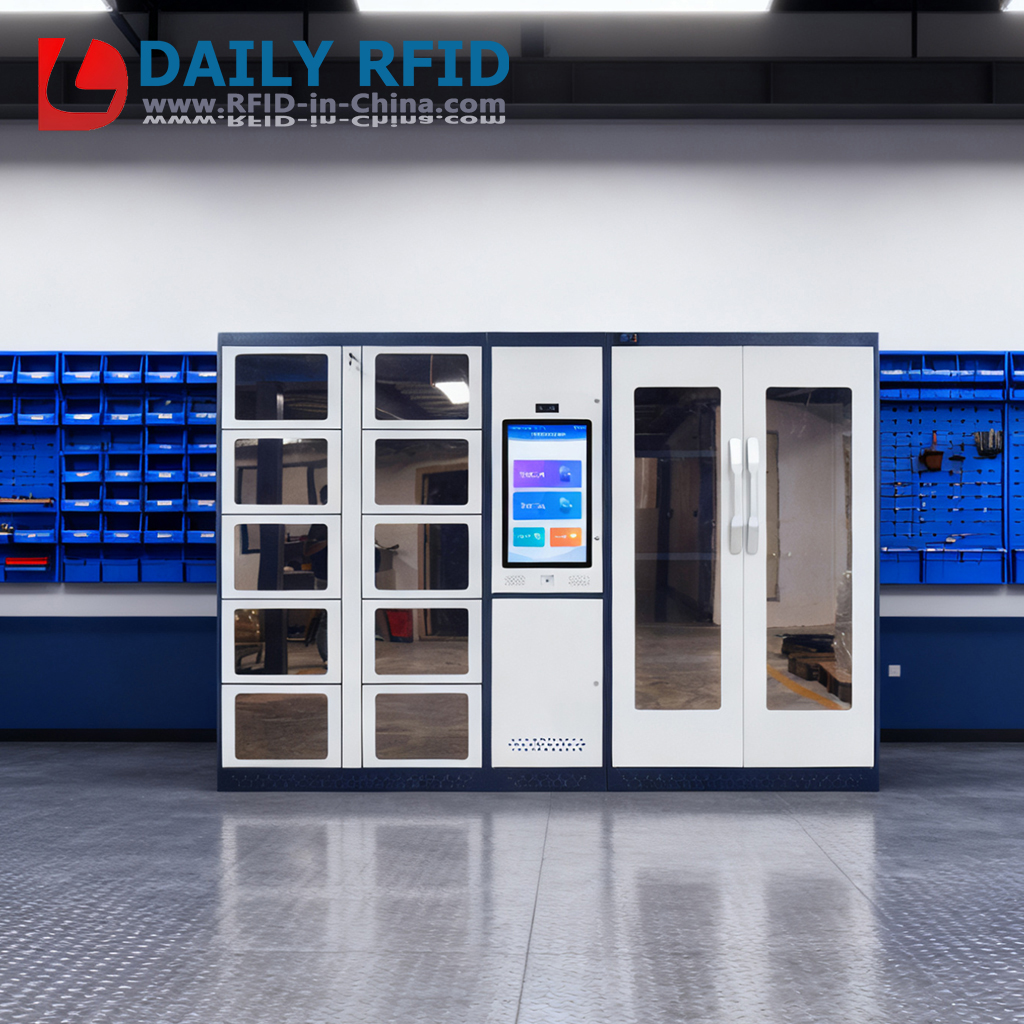

RFID Smart Cabinet

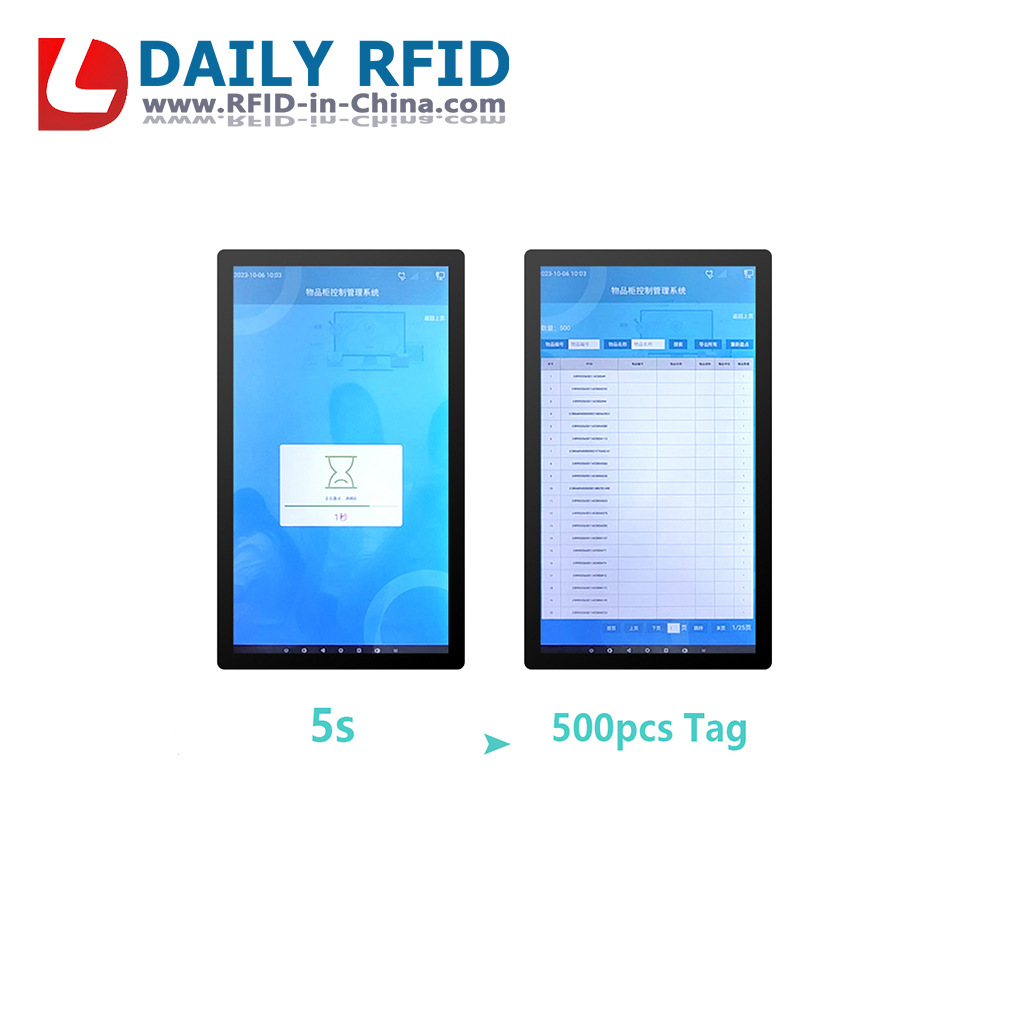

Type: Embedded Reader Modules Model: RFID Smart Cabinet Component Params: Type: RFID Smart Cabinet Component Support protocol: ISO18000-6C, EPC Class 1 Gen 2 Operating Frequency: ISM 860MHz~868MHz, 902MHz~928MHz, or 920MHz~925MHz, global frequency customization from 860MHz~960MHz is available Working mode: AI-Driven Dense Inventory Mode, Active Mode, Answer Mode Transmit power Max: 30dBm, software adjustable down to 20dBm for partitioned near-field signal control Antenna: Supports multi-channel external SMA RF antenna interfaces, configurable with 4-port, 8-port or 16-port antenna layouts for cabinet zoning Reading Range: 0.1m ~ 5m, software optimized for accurate identification within cabinet fixed range Anti-collision: Supports simultaneous reading of more than 500 tags per partition area Read speed: High-speed cyclic scanning, average reading time for single tag is less than 10ms per 64 bits RSSI: Supported to realize shelf-level asset positioning and layered signal filtering Read prompt: Buzzer and LED status pin output SDK: Free SDK with complete communication documents and debugging tools provided Power supply: DC +9V ~ 24V, PoE power supply is optional Power consumption: Low power consumption design with standard working power about 6W Operating Temp.: -30°C ~ +70°C Storage Temp: -40°C ~ +85°C Dimension: 180mm × 140mm × 30mm, slim structure suitable for embedded backboard and flush installation Weight: 850g Case Color: Industrial silver metal and dark gray aluminum alloy International Protection: IP54 dustproof and splashproof Humidity: 5% to 95% non-condensing RS232 Port: Supported RJ45 Port: Supported native TCP/IP interface for enterprise centralized system access GPIO: Supported opto-isolated I/O ports for linkage control of electronic door locks, status indicator lights and door opening/closing sensors USB: Supported USB 2.0 for equipment maintenance, parameter configuration and upper computer connection 4g/wifi/bt: Optional modular expansion for wireless networking SDK Support: Full cross-platform development support covering X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, Android and other environments OEM & ODM Support: Customizable antenna multiplexing quantity, shell size and appearance structure to match various cabinet equipment Advantage 1: Adopts scalable multi-antenna expansion design, one main control module can drive multiple groups of partition antennas to cover dozens of drawers and shelf areas inside the cabinet. Combined with adjustable transmitting power and RSSI signal identification technology, it effectively avoids cross reading between adjacent compartments and realizes precise regional asset identification. Advantage 2: Equipped with reserved GPIO isolation trigger interface, which can directly link cabinet electronic locks, door magnetic sensors and indicator lights. It supports automatic door opening authorization and cabinet switch state monitoring through upper computer system, realizing edge-end automatic linkage control without additional intermediate control equipment. Advantage 3: Built with industrial aluminum alloy shell and wide temperature working range from -30°C to 70°C, adapting to medical clean rooms, humid workshops and office file storage and other complex environments. Powerful high-density anti-collision algorithm can complete rapid batch inventory of hundreds of stacked tags in a short time, automatically generate real-time asset inventory data after cabinet closing. Material: ABS/PC engineering plastic, rfid chip,PCB board Applicable Industry: Hospital medical intelligent consumable cabinets for implantable medical devices and pharmaceutical reagent automatic inventory management; factory intelligent tool cabinets for industrial measuring instruments and special equipment borrowing recording and traceability; government and enterprise confidential document vaults and file cabinets for long-term automatic audit of confidential materials and legal archives; jewelry and high-end watch display cabinets for real-time monitoring of displayed commodities and background inventory data synchronization RFID Smart Tool Management Cabinet with Anti-Loss Function (7) RFID Smart Tool Management Cabinet with Anti-Loss Function (5) RFID Smart Tool Management Cabinet with Anti-Loss Function (4) RFID Smart Tool Management Cabinet with Anti-Loss Function (8) RFID Smart Tool Management Cabinet with Anti-Loss Function (6) RFID Smart Tool Management Cabinet with Anti-Loss Function (1) RFID Smart Tool Management Cabinet with Anti-Loss Function (3) RFID Smart Tool Management Cabinet with Anti-Loss Function (2) RFID Smart Tool Management Cabinet with Anti-Loss Function (9)
