RFID System

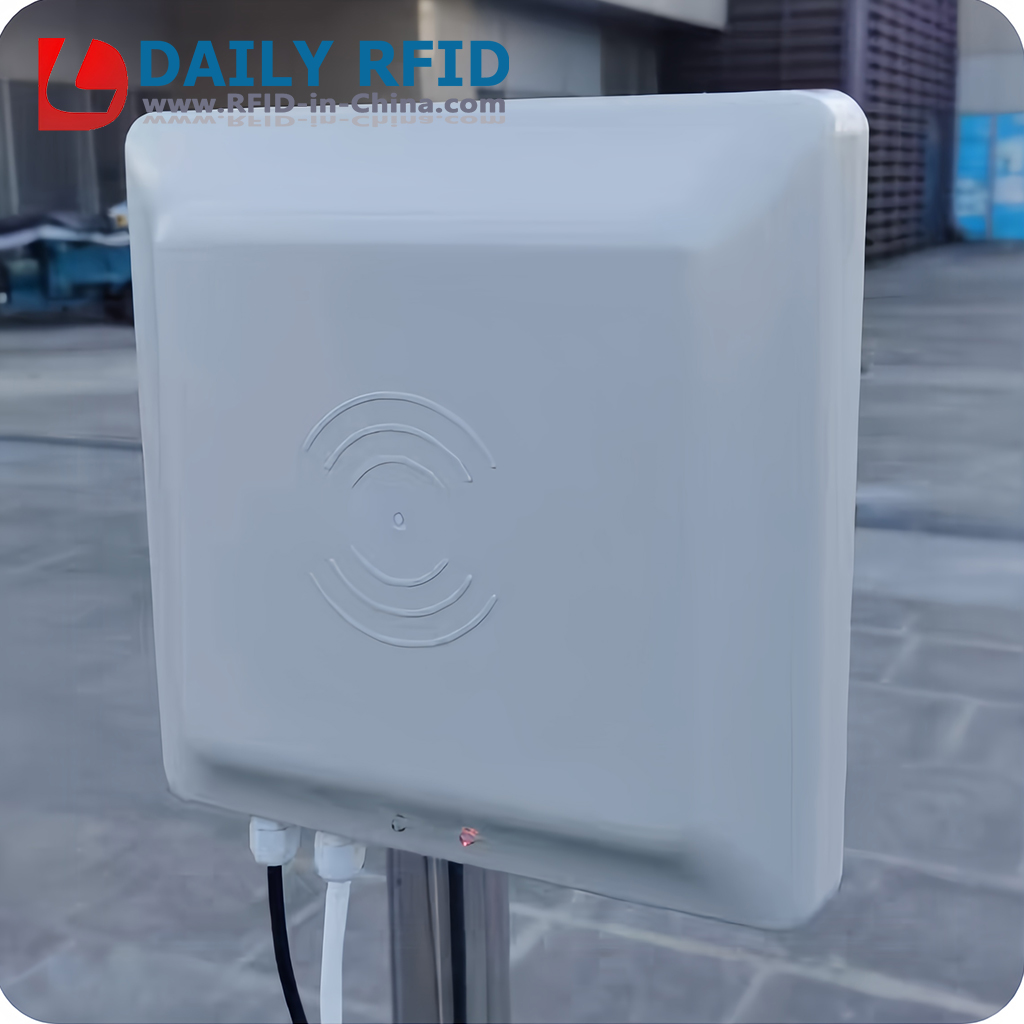

Type: Vehicle Access Control Solution Package Model: Parking Management RFID Development Kit Params: Type: Contactless Read & Write Development Kit for Vehicle Access Control Operating Frequency: Long-distance barrier access via global UHF 860-960MHz RAIN RFID; optional 13.56MHz NFC for dual-verification parking cards and employee attendance IC Available: Impinj Monza R6-P/M730/M750, NXP UCODE 8/9/UCODE DNA (anti-cloning encrypted vehicle verification); MIFARE Classic 1K/DESFire EV3 for short-range multi-scenario use Size: Fixed long-distance reader: 450×450×60mm; desktop card issuer: 140×110×30mm Matching tags: 100×30mm anti-tear windshield sticker tags, standard CR80 PVC cards, 120×30mm anti-metal rigid license plate tags Reading Distance: Overhead antenna reading range 3–15m (software customizable for gate induction area); desktop card writer reading range 3–10cm Material: Reader & antenna with weatherproof aluminum base and UV-resistant heavy-duty ABS outer shell; tags adopt fragile breakable PET, destructible antenna foil or outdoor PC rigid shell per installation needs Color: Equipment available in off-white, gray and traffic yellow; vehicle tags have transparent, semi-gloss white and black options Operating Temperature: -30°C ~ +70°C for on-site lane devices Storage Temperature: -40°C ~ +85°C Competitive Advantage 1. Long-distance identification to realize vehicle quick pass without stopping 2. Tamper-proof tags cannot be reused after peeling off, effectively prevent tag transfer cheating 3. Complete supporting debugging software and open SDK for secondary development 4. Support vehicle entry & exit recording, license plate binding and parking charge statistics 5. Stable recognition performance with strong anti-interference ability for outdoor parking lot environment 6. Customized printing, serial number, LOGO and system function adjustment are supported 7. OEM available Material: ABS/PC engineering plastic, rfid chip,PCB board Consumer-grade products: ABS engineering plastic / Plastic housing High-protection products: Stainless steel / Aluminum alloy + Stainless steel Handheld devices: ABS plastic + rubber edging / Aluminum alloy Applicable Industry: Smart City Access Control Developers, Electronic Toll Collection (ETC) System Integrators, Gated Residential Community Security Providers, Commercial Airport / Office Parking Operators, Autonomous Logistics Fleet Depots, and Unmanned Car Wash System Vendors RFID Management Development Kit-2 Metal-resistant vehicle management tag Metal-resistant vehicle management Tag-1 DL921-1 DL930-3 READER 920 plus (8) DL 930- DL 930-13（LED）-P2 RFID Management Development Kit-3
