WIFI RFID Reader

Name: "WIFI RFID Reader"
Rating: 5 (477 reviews)

SKU: 4604217610

Model: WiFi RFID Reader DL920Plus

Product Details

Product Specification

Type	WIFI RFID Reader	Model	WiFi RFID Reader DL920Plus
Params	Support protocol: ISO18000-6B / ISO18000-6C EPC Gen2 Operating Frequency: 860MHz ~ 960MHz Working mode: FHSS or fixed frequency pulse transmitting working mode set by software Transmit power (Max): 30 dBm, adjustable from 20dBm to 30dBm via software Antenna: Integrated internal antenna Reading Range: 8m ~ 15m tag and environment dependent Anti-collision: Supported Read speed: The average read time for a single card is less than 10ms per 64 bits RSSI: Not explicitly specified Read prompt: Buzzer and integrated LED light SDK: Free SDK provided including Demo Software, User's Guide, Source Code, DLL Instruction, and Firmware Upgrade files Power supply: DC +9V, 4A Power consumption: 6W Operating Temp.: -30°C ~ +70°C Storage Temp: Not explicitly specified Dimension: 450mm × 450mm × 60mm Weight: 3700g Case Color: White or Black, customizable International Protection: IP64 Humidity: Not explicitly specified RS232 Port: Supported RJ45 Port: Supported TCP/IP Port GPIO: Supported with Wiegand 26/34, Trigger port and RS485 Port USB: Supported 4g/wifi/bt: Integrated WiFi module, 4G and Bluetooth not supported by default SDK Support: Comprehensive software bundle supporting demo apps, DLL integration, and communication protocol guidelines OEM & ODM Support: Customizable case colors and functional configurations available Advantage 1: Built-in WiFi wireless communication module eliminates complicated on-site network wiring, effectively reduces infrastructure deployment costs, and supports flexible wireless data transmission for large-area and distributed monitoring scenarios. Advantage 2: Delivers excellent ultra-long reading performance with a maximum reading distance of 15 meters and stable writing distance up to 7 meters. The software-adjustable transmitting power from 20dBm to 30dBm allows flexible coverage adjustment to adapt to different site range requirements and avoid redundant signal interference. Advantage 3: Features IP64 protective grade and ultra-wide temperature resistance from -30°C to 70°C, supporting stable operation in extreme low-temperature cold storage and high-temperature industrial environments. Equipped with complete industrial interfaces including RJ45, USB, RS232, RS485 and Wiegand, it achieves seamless docking with various access control and industrial management systems.	Material	Aluminum, Durable ABS, rfid chip, PCB board

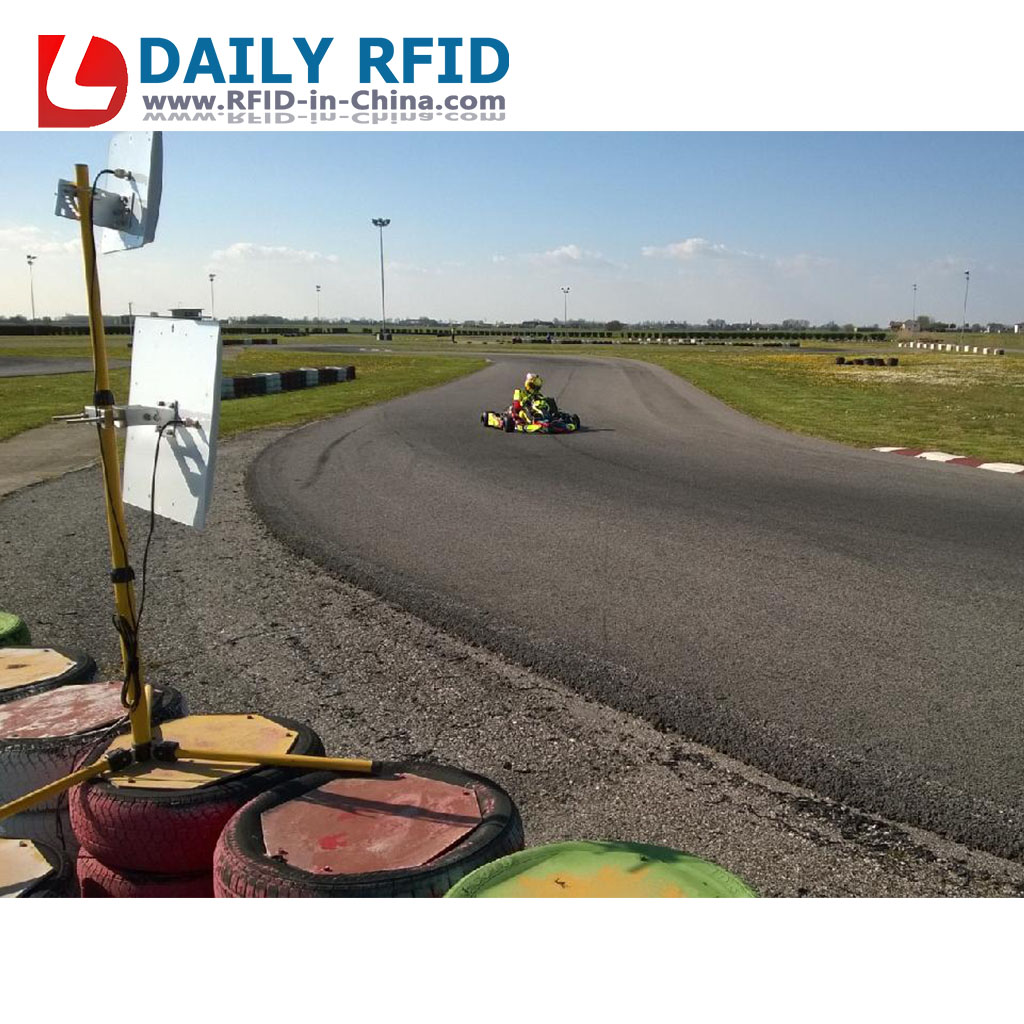

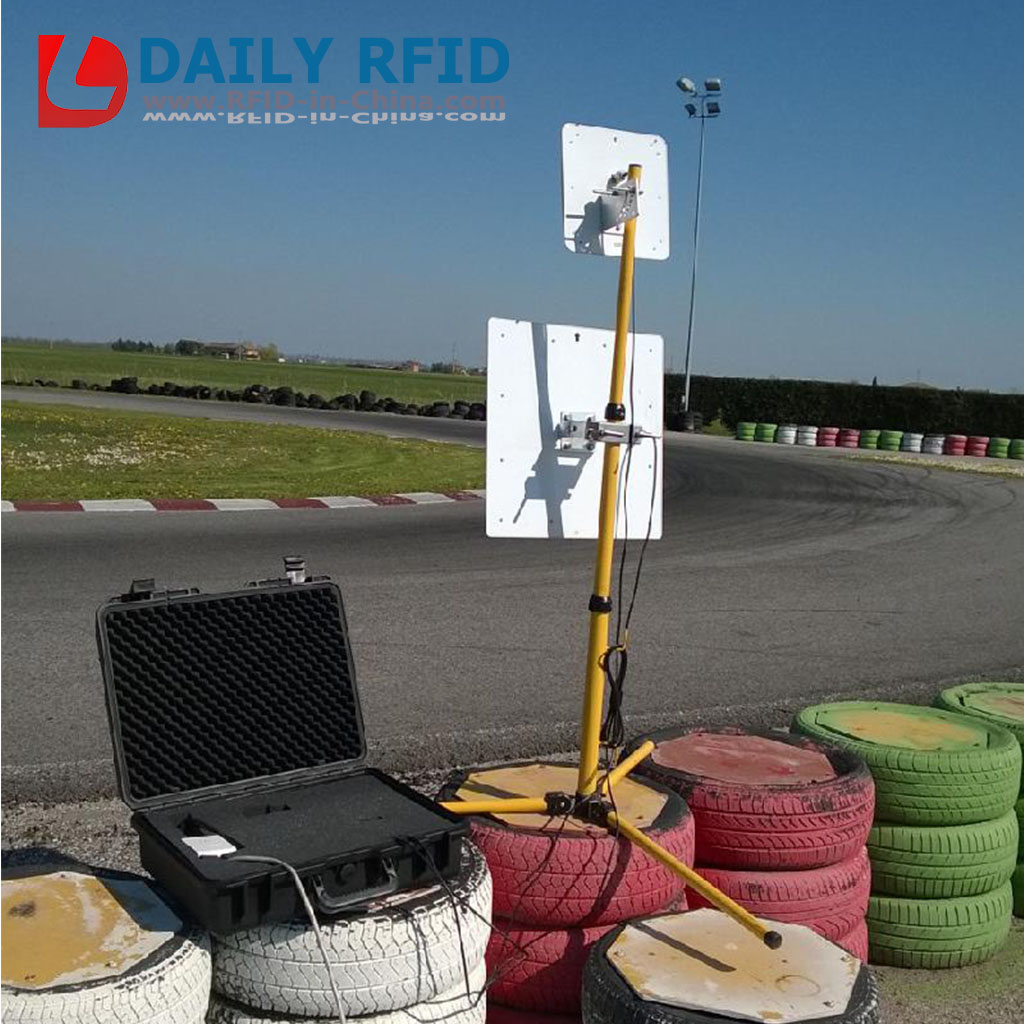

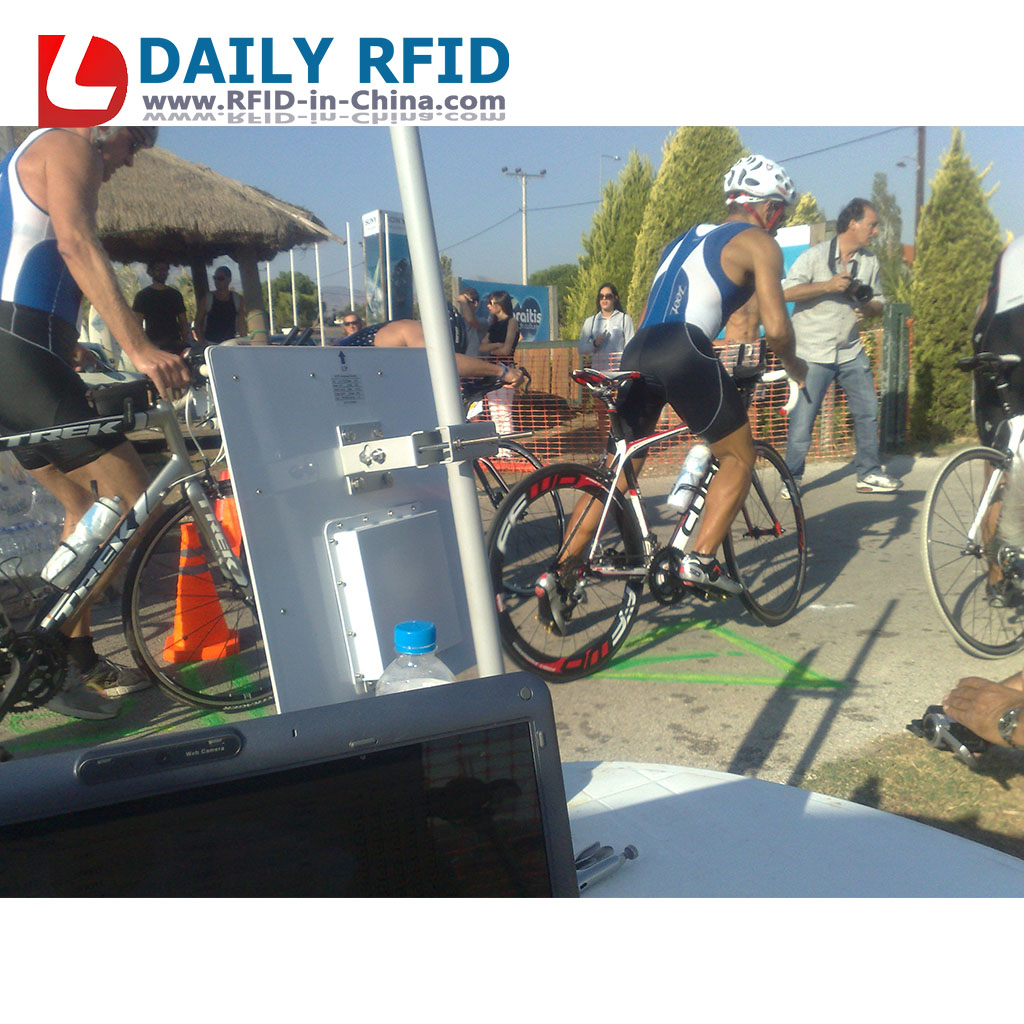

Applicable Industry	Intelligent parking and vehicle access long-range wireless identification management; large warehouse and yard incoming and outgoing pallet asset automatic inventory tracking; cold storage and low-temperature food supply chain long-term stable asset monitoring; industrial automated assembly line and sorting station real-time production item tracking and data logging
